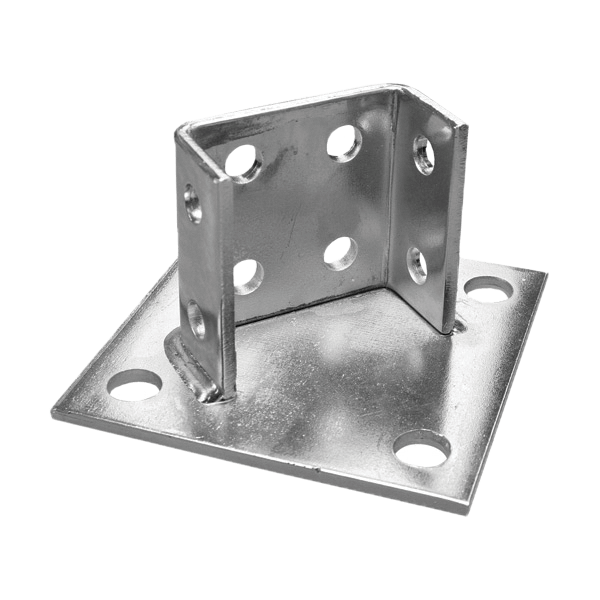

Our Post Bases are designed to fit with all Strut channels and double channels.
At the European Strut & Support Manufacturer we can also make customized post bases for square and rectangular tubes, or for any kind of profiles and beams.
All Post Bases are manufactured from 4,5 or 6 mm thick carbon steel and are available in a variety of finishes.
As manufacturer’s we can produce in different materials, thicknesses, lengths, with or without finish. When it comes to Post Base production we can design and produce what you need!

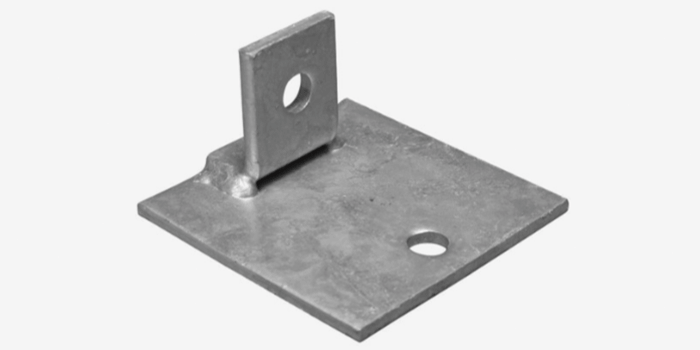

Post base 100x100x50; Single 41 |
4.1 |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions | Hole | Packing | Weight (kg/pcs) | Part no.1 | Finish | |||||||||
| W | L | H | T | BL | SG | HG | SS | ||||||||
|
100 |
100 | 50 |
4 6 |
Ø13 |
25 |
0.40 0.61 |
04.4001 04.6001 |
● ● |
● ● |
● ● |
● ○ |
||||

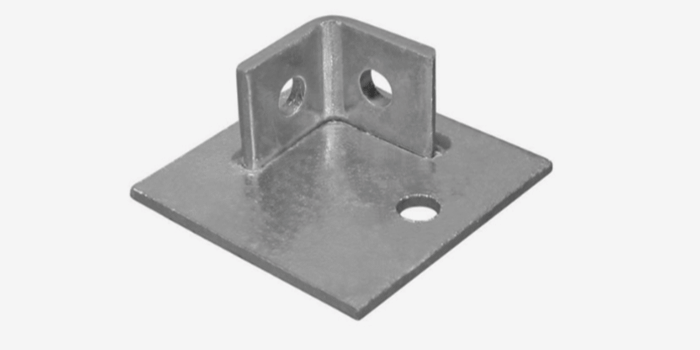

Post base 100x100x40; Single 41 |
4.2 |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions | Hole | Packing | Weight (kg/pcs) | Part no.1 | Finish | |||||||||
| W | L | H | T | BL | SG | HG | SS | ||||||||
|
100 |
100 | 40 |
4 6 |
Ø13 |
25 |
0.42 0.63 |
04.4002 04.6003 |
● ● |
● ● |
● ● |
● ○ |
||||

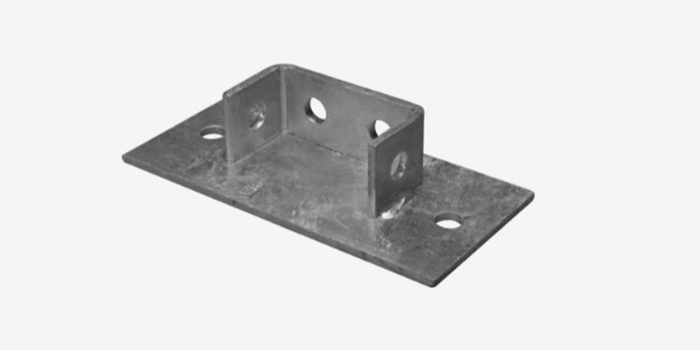

Post base 200x100x40; Double 41 |
4.3 |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions | Hole | Packing | Weight (kg/pcs) | Part no.1 | Finish | |||||||||
| W | L | H | T | BL | SG | HG | SS | ||||||||
|
200 |
100 | 40 |
4 6 |
Ø13 |
10 |
1.04 1.25 |
04.4003 04.6003 |
● ● |
● ● |
● ● |
● ○ |
||||
Post base 215x45x150; Single 41 - Open |
4.4 |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions | Hole | Packing | Weight (kg/pcs) | Part no.1 | Finish | |||||||||
| W | L | H | T | BL | SG | HG | SS | ||||||||
|
150 |
215 | 45 |
4 6 |
Ø13 |
8 |
1.45 1.66 |
04.4004 04.6004 |
● ● |
● ● |
● ● |
● ○ |
||||

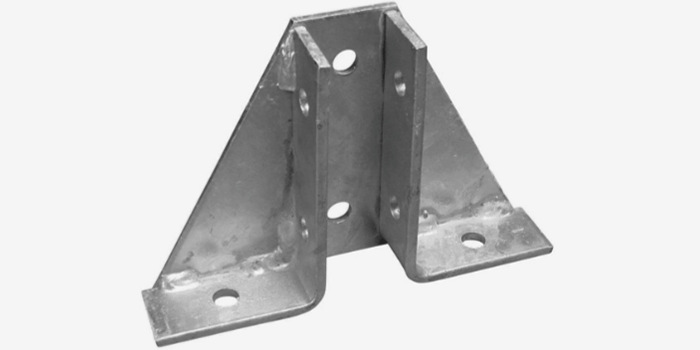

Post base 255x45x150; Single 41 - Open |
4.5 |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions | Hole | Packing | Weight (kg/pcs) | Part no.1 | Finish | |||||||||
| W | L | H | T | BL | SG | HG | SS | ||||||||
|
150 |
255 | 45 |
4 6 |
Ø13 |
1 |
1.78 1.99 |
04.4005 04.6005 |
● ● |
● ● |
● ● |
● ○ |
||||

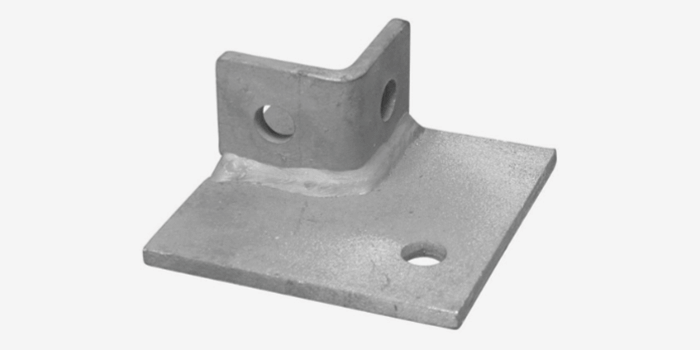

Post base 100x100x40; Single 41 - Corner |
4.6 |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions | Hole | Packing | Weight (kg/pcs) | Part no.1 | Finish | |||||||||
| W | L | H | T | BL | SG | HG | SS | ||||||||
|
100 |
100 | 40 |
4 6 |
Ø13 |
4 |
0.62 |
04.4006 04.6006 |
● ● |
● ● |
● ● |
● ○ |
||||

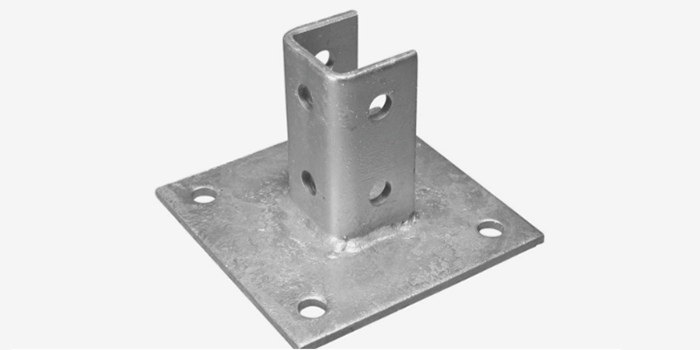

Post base 150x150x100; Single 41 |
4.7 |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions | Hole | Packing | Weight (kg/pcs) | Part no.1 | Finish | |||||||||
| W | L | H | T | BL | SG | HG | SS | ||||||||
|
150 |
150 | 100 |
4 6 |
Ø13 |
8 |
1.45 1.66 |
04.4007 04.6007 |
● ● |
● ● |
● ● |
● ○ |
||||

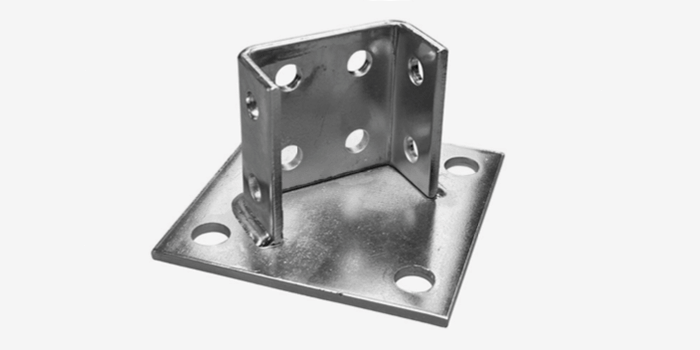

Post base 150x150x100; Double 41 - Angle 45 |
4.8 |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions | Hole | Packing | Weight (kg/pcs) | Part no.1 | Finish | |||||||||
| W | L | H | T | BL | SG | HG | SS | ||||||||
|
150 |
150 | 100 |
4 6 |
Ø13 |
1 |
1.58 1.79 |
04.4008 04.6008 |
● ● |
● ● |
● ● |
● ○ |
||||

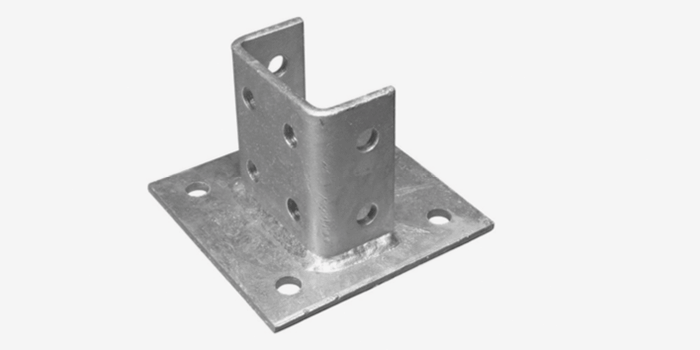

Post base 150x150x100; Double 41 |
4.9 |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions | Hole | Packing | Weight (kg/pcs) | Part no.1 | Finish | |||||||||
| W | L | H | T | BL | SG | HG | SS | ||||||||
|
150 |
150 | 100 |
4 6 |
Ø13 |
8 |
1.65 1.86 |
04.4009 04.6009 |
● ● |
● ● |
● ● |
● ○ |
||||

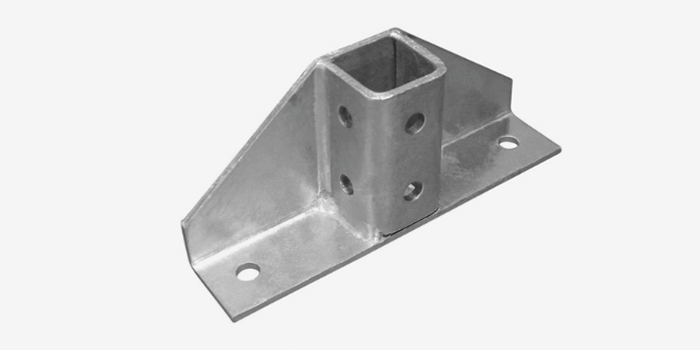

Post base Low 250x55x105; Single 41 |
4.11 |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions | Hole | Packing | Weight (kg/pcs) | Part no.1 | Finish | |||||||||
| W | L | H | T | BL | SG | HG | SS | ||||||||
|
250 |
55 | 105 |
4 6 |
Ø13 |
8 |
1.67 1.88 |
04.4011 04.6011 |
● ● |
● ● |
● ● |
● ○ |
||||
Post base Rectangular 80x160x100; Single 41 |
4.12 |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions | Hole | Packing | Weight (kg/pcs) | Part no.1 | Finish | |||||||||
| W | L | H | T | BL | SG | HG | SS | ||||||||
|
80 |
160 | 100 |
4 6 |
Ø13 |
1 |
0.99 1.20 |
04.4012 04.6012 |
● ● |
● ● |
● ● |
● ○ |
||||
