The trapeze hanger is a fastening element for trapezoidal sheets and ceilings. It is for fixing sprinkler systems with screw SKS M8x100 in a punched hole. For fixing other pipes with self-tapping screws or steel blind rivets. Specified shear points allow for ideal adjustment to a trapezoidal shape.
Besides Hanging Systems products listed below we can produce custom made solutions for your needs in terms of different materials, thicknesses, lengths and with or without a finish.
Trapeze short 90x90 M10 |
9.1 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions | Packing | Weight (kg/pcs) | Part no.1 | Finish | |||||||||||
| W | H | Thread | BL | EG | HG | SS | ||||||||||
|
90 |
90 |
M10 |
25 |
0.32 |
09.3010 |
● |
● |
● |
○ | |||||||

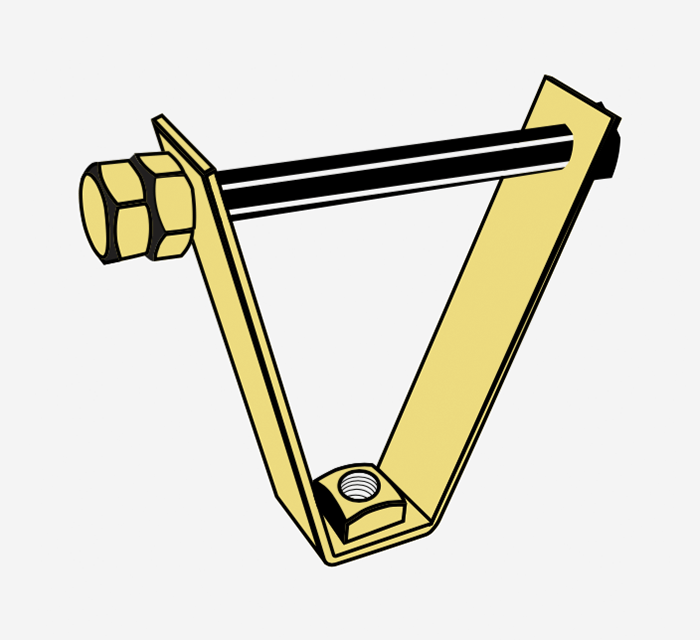

Trapeze medium 105x90 |
9.2 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions | Packing | Weight (kg/pcs) | Part no.1 | Finish | |||||||||||
| W | H | Thread | BL | EG | HG | SS | ||||||||||
|
90 90 |
105 105 |
M10 M12 |
25 25 |
0.38 0.41 |
09.3011 09.3012 |
● |
● |
● |
○ | |||||||

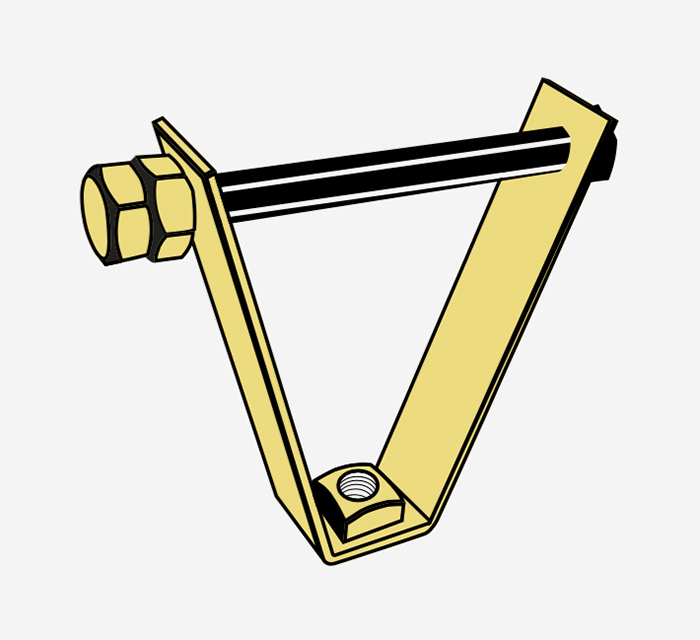

Trapeze high 120x90 M12 |
9.3 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions | Packing | Weight (kg/pcs) | Part no.1 | Finish | |||||||||||
| W | H | Thread | BL | EG | HG | SS | ||||||||||
|
90 |
120 |
M12 |
25 |
0.43 |
09.3013 |
● |
● |
● |
○ | |||||||
Mounting plate 120x40x5 M8 |
9.4 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions | Packing | Weight (kg/pcs) | Part no.1 | Finish | |||||||||||
| L | W | T | Thread | BL | EG | HG | SS | |||||||||
|
120 |
40 |
5 |
DIN 934 DIN 6334 |
50 |
0.165 0.17 |
09.5001 09.5002 |
● |
● |
● |
○ | ||||||

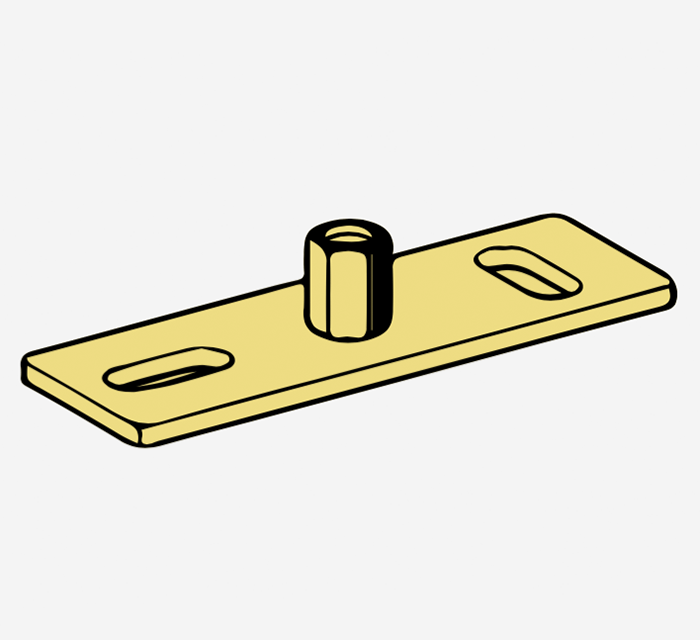

Mounting plate 120x40x5 M10 |
9.5 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions | Packing | Weight (kg/pcs) | Part no.1 | Finish | |||||||||||
| L | W | T | Thread | BL | EG | HG | SS | |||||||||
|
120 |
40 |
5 |
DIN 934 DIN 6334 |
50 |
0.175 0.18 |
09.5003 09.5004 |
● |
● |
● |
○ | ||||||
Mounting plate 120x40x5 M16 |
9.6 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions | Packing | Weight (kg/pcs) | Part no.1 | Finish | |||||||||||
| L | W | T | Thread | BL | EG | HG | SS | |||||||||
|
120 |
40 |
5 |
DIN 934 DIN 6334 |
50 |
0.2 0.25 |
09.5005 09.5006 |
● |
● |
● |
○ | ||||||

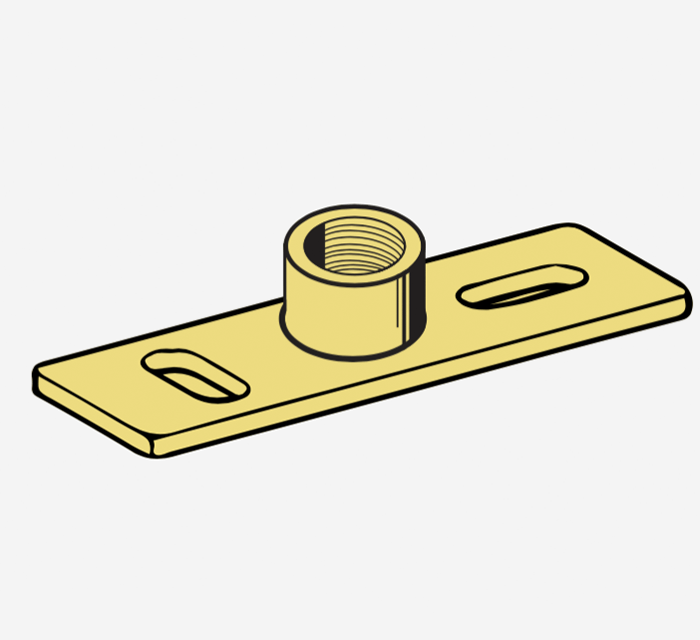

Mounting plate 120x40x5 1/2 |
9.7 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions | Packing | Weight (kg/pcs) | Part no.1 | Finish | |||||||||||
| L | W | T | Thread | BL | EG | HG | SS | |||||||||
|
120 |
40 |
5 |
1/2" |
50 |
0.295 |
09.5007 |
● |
● |
● |
○ | ||||||

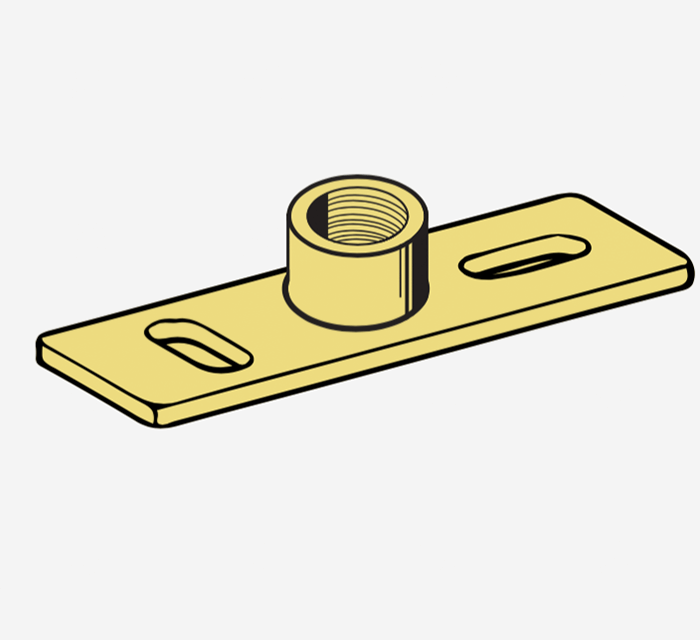

Mounting plate 120x40x5 1 |
9.8 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions | Packing | Weight (kg/pcs) | Part no.1 | Finish | |||||||||||
| L | W | T | Thread | BL | EG | HG | SS | |||||||||
|
120 |
45 |
5 |
1" |
50 |
0.32 |
09.5008 |
● |
● |
● |
○ | ||||||

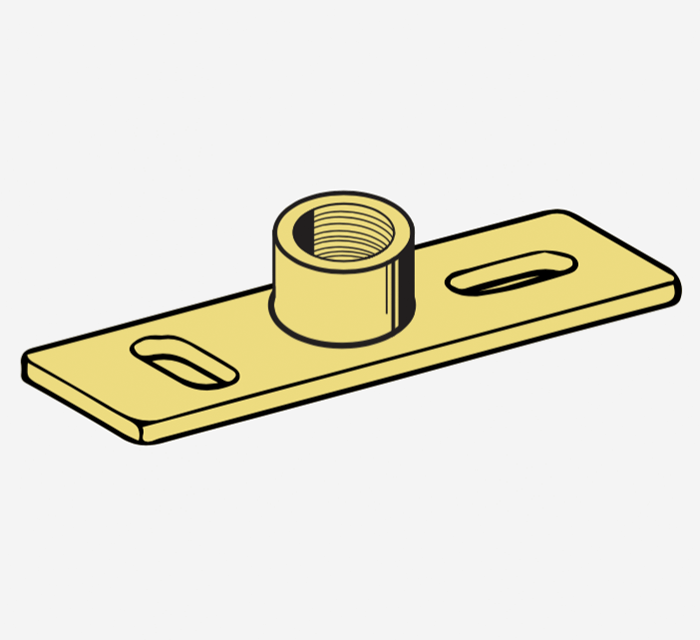

Mounting plate 120x45x6 1 1/2 |
9.9 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions | Packing | Weight (kg/pcs) | Part no.1 | Finish | |||||||||||
| L | W | T | Thread | BL | EG | HG | SS | |||||||||
|
120 |
45 |
6 |
11/2" |
50 |
0.39 |
09.6009 |
● |
● |
● |
○ | ||||||

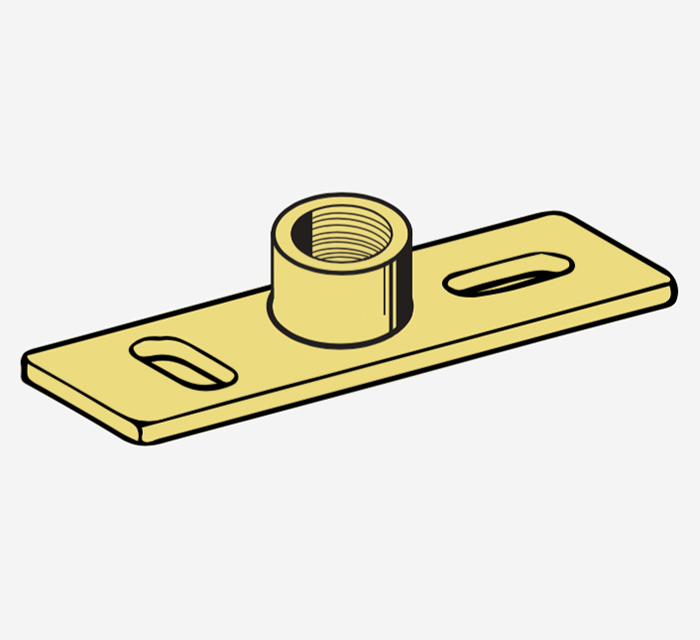

Mounting plate 80x30x3 1/2 |
9.10 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions | Packing | Weight (kg/pcs) | Part no.1 | Finish | |||||||||||
| L | W | T | Thread | BL | EG | HG | SS | |||||||||
|
80 |
30 |
6 |
1/2" |
50 |
0.249 |
09.0314 |
● |
● |
● |
○ | ||||||

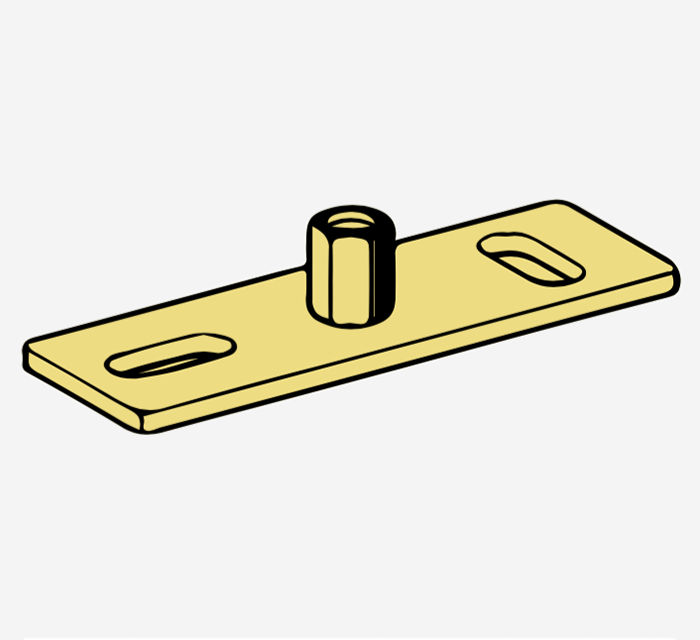

Mounting plate 80x30x3 M10 |
9.11 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions | Packing | Weight (kg/pcs) | Part no.1 | Finish | |||||||||||
| L | W | T | Thread | BL | EG | HG | SS | |||||||||
|
80 |
30 |
3 |
M10 |
50 |
0.129 |
09.0315 |
● |
● |
● |
○ | ||||||

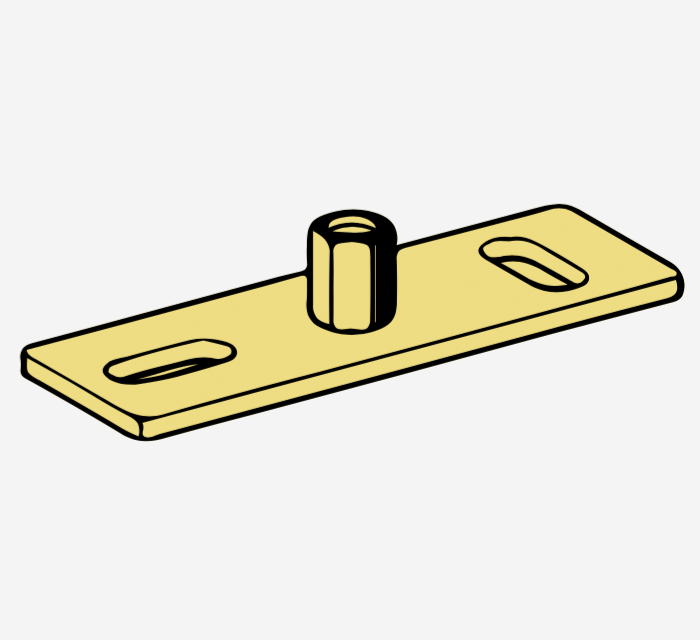

Trapeze short 90x90 M10 |
9.12 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions | Packing | Weight (kg/pcs) | Part no.1 | Finish | |||||||||||
| L | W | T | Thread | BL | EG | HG | SS | |||||||||
|
80 |
30 |
3 |
M8-M10 |
50 |
0.135 |
09.0316 |
● |
● |
● |
○ | ||||||
