Flat Plate Fixing Bracket

This section offers a wide range of fittings and accessories to complete our Strut channel system.

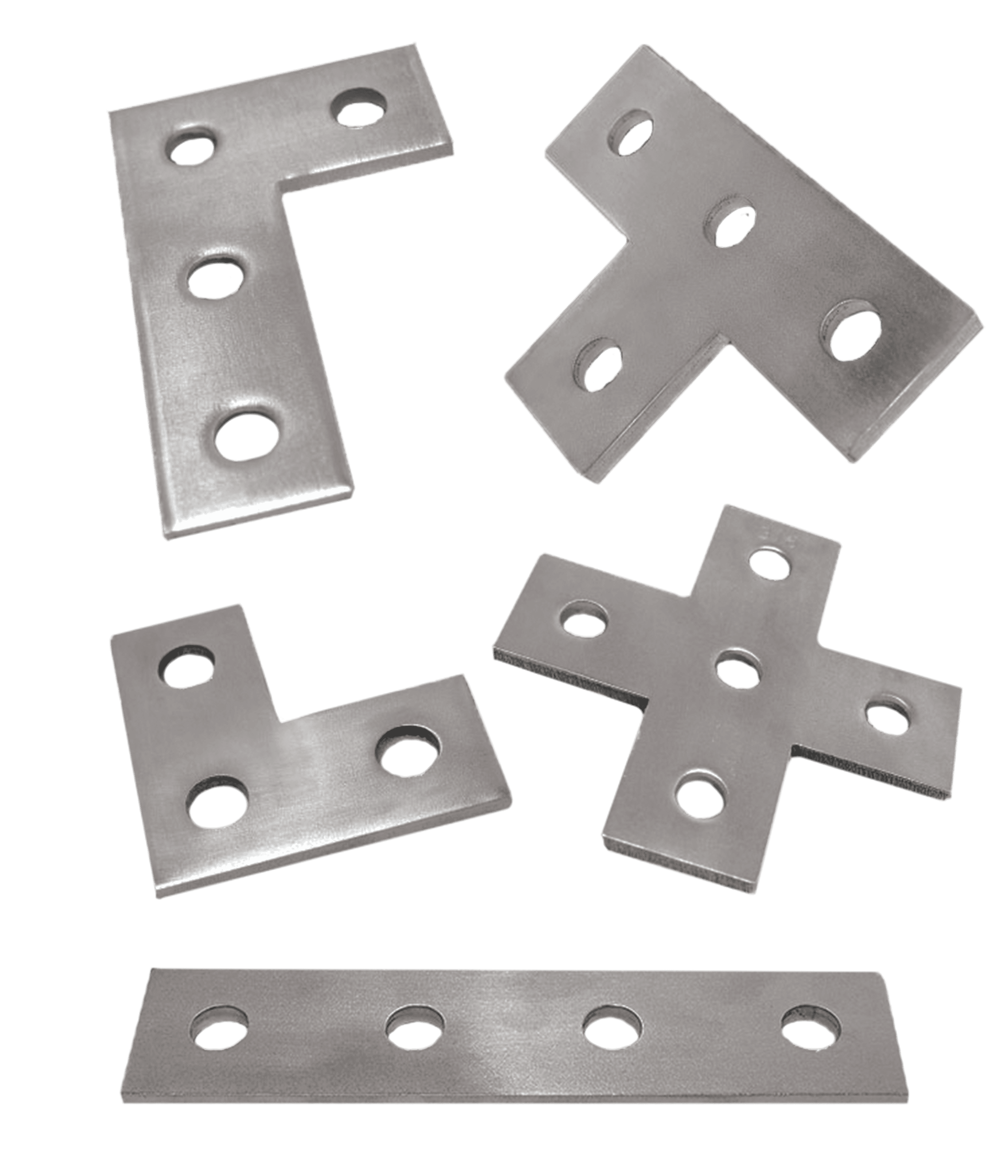

Flat fixing brackets are suitable for the construction of the channel systems. The connectors are offered as a flat plate or angle fittings with formed holes or slot for connecting the mounting channel.

At the European Strut & Support Manufacturer, the fittings can be offered in 4, 5, or 6 mm and are available in a variety of finishes as well as stainless steel finish.



All of our Flat Plate Fixing Bracket products can be produced in different materials, thicknesses, lengths, with or without a finish. We can design and produce what you need!

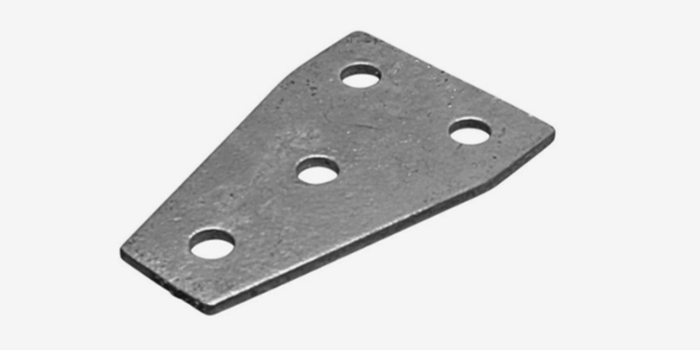

Flat fixing 90x136 - 4 holes

5.1

     Dimensions

Nr. of holes

Packing Weight (kg/pcs) Part no.1 Finish
W L H Hole BL SG HG SS

90

136

4

6

Ø13

4

10

0.30

0.46

05.4001

05.6001

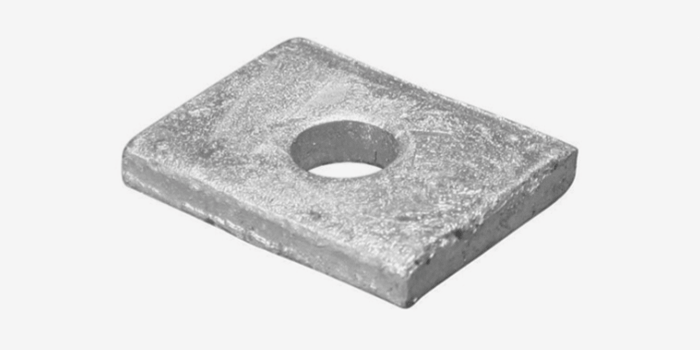

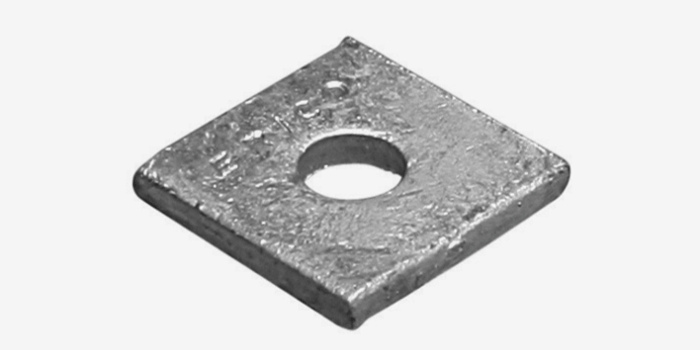

Flat fixing 40x40 - 1 hole

5.2

     Dimensions

Nr. of holes

Packing Weight (kg/pcs) Part no.1 Finish
W L H Hole BL SG HG SS

40

40

4

6

Ø13

1

25

0.05

0.07

05.4002

05.6002



Flat fixing 40x30 - 1 hole

5.3

     Dimensions

Nr. of holes

Packing Weight (kg/pcs) Part no.1 Finish
W L H Hole BL SG HG SS

40

30

4

6

Ø13

1

25

0.03

0.05

05.4003

05.6003

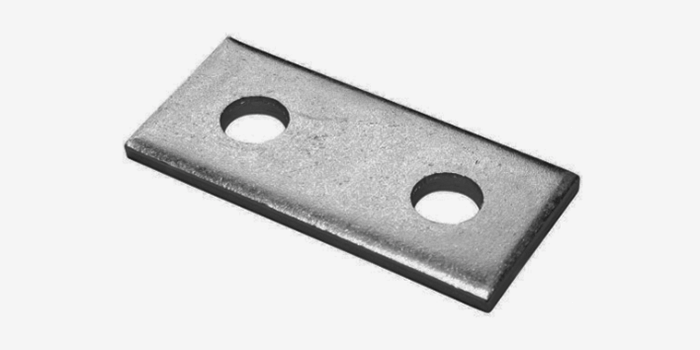

Flat fixing 40x88 - 2 holes

5.4

     Dimensions

Nr. of holes

Packing Weight (kg/pcs) Part no.1 Finish
W L H Hole BL SG HG SS

40

80

4

6

Ø13

2

25

0.10

0.15

05.4004

05.6004

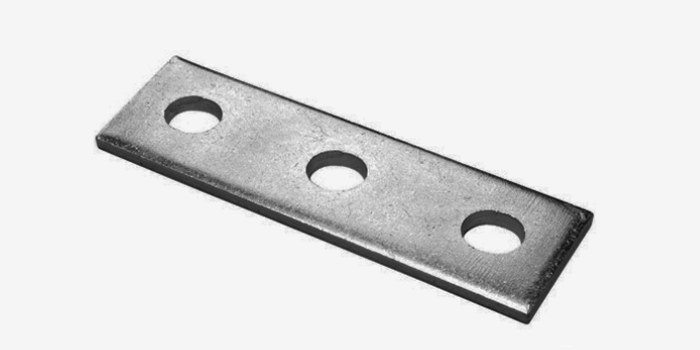

Flat fixing 40x136 - 3 holes

5.5

     Dimensions

Nr. of holes

Packing Weight (kg/pcs) Part no.1 Finish
W L H Hole BL SG HG SS

90

136

4

6

Ø13

4

10

0.30

0.46

05.4005

05.6005

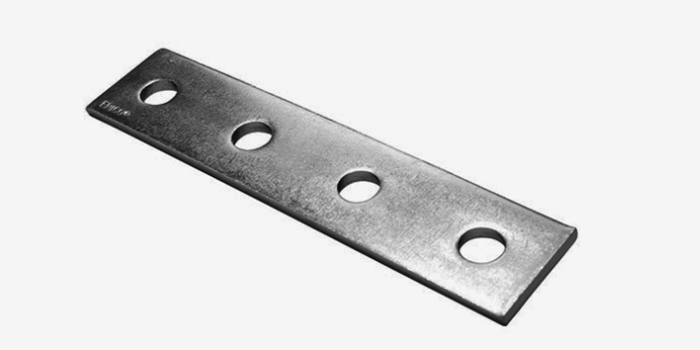

Flat fixing 40x168 - 4 holes

5.6

     Dimensions

Nr. of holes

Packing Weight (kg/pcs) Part no.1 Finish
W L H Hole BL SG HG SS

40

168

4

6

Ø13

4

10

0.21

0.31

05.4006

05.6006

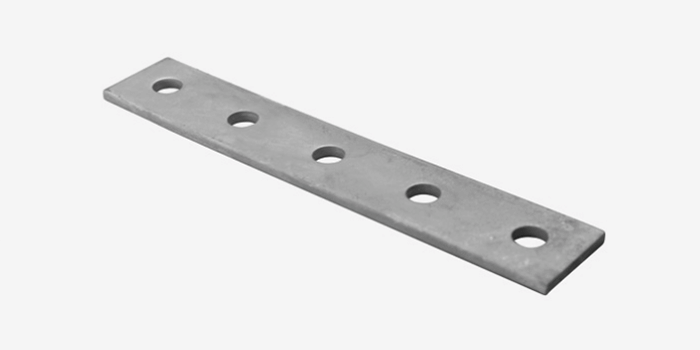

Flat fixing 40x232 - 5 holes

5.7

     Dimensions

Nr. of holes

Packing Weight (kg/pcs) Part no.1 Finish
W L H Hole BL SG HG SS

40

235

4

6

Ø13

5

10

0.273

0.39

05.4007

05.6007

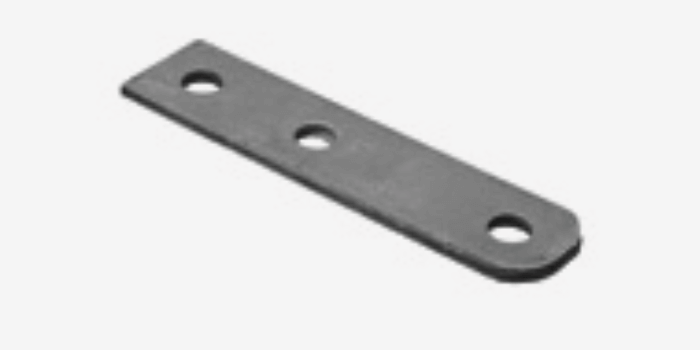

Flat fixing 40x164 - 3 holes

5.8

     Dimensions

Nr. of holes

Packing Weight (kg/pcs) Part no.1 Finish
W L H Hole BL SG HG SS

40

164

4

6

Ø13

3

25

2.02

2.89

05.4008

05.6008

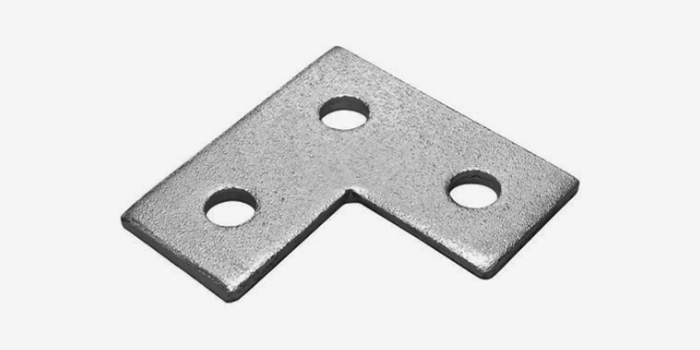

Flat fixing G 90x90 - 3 holes

5.9

     Dimensions

Nr. of holes

Packing Weight (kg/pcs) Part no.1 Finish
W L H Hole BL SG HG SS

90

90

4

6

Ø13

3

25

0.17

0.24

05.4009

05.6009

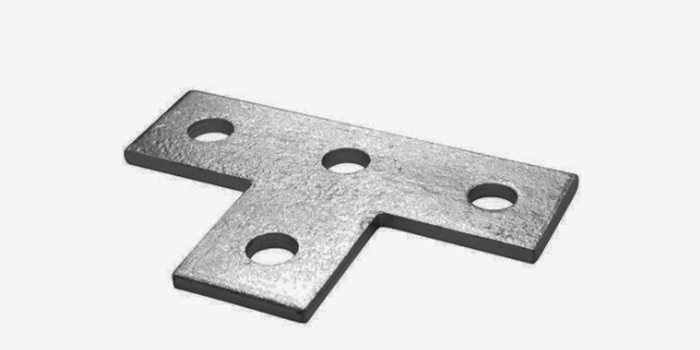

Flat fixing T 139x90 - 4 holes

5.10

     Dimensions

Nr. of holes

Packing Weight (kg/pcs) Part no.1 Finish
W L H Hole BL SG HG SS

139

90

4

6

Ø13

4

25

0.30

0.42

05.4010

05.6010

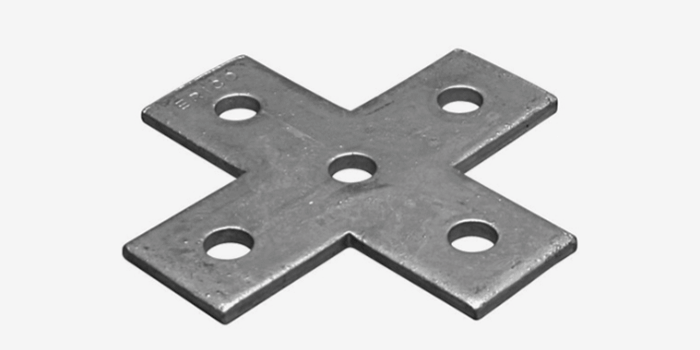

Flat fixing 138x138 - 5 holes

5.11

     Dimensions

Nr. of holes

Packing Weight (kg/pcs) Part no.1 Finish
W L H Hole BL SG HG SS

138

138

4

6

Ø13

5

10

0.30

0.43

05.4011

05.6011
