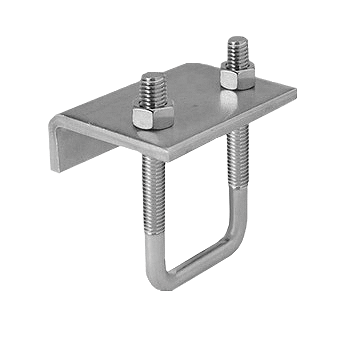

Beam clamps are designed to secure all Strut Channels, or threaded rods, to beams or supports for the purpose of running piping, conduit, or tubing. This section includes the most commonly used beam clamps, however, many others are available on request.
At the European Strut & Support Manufacturer we stay dedicated to producing custom made solutions for our clients. Therefore, all of our Beam Clamp products can be produced in different materials, thicknesses, lengths and with or without a finish.

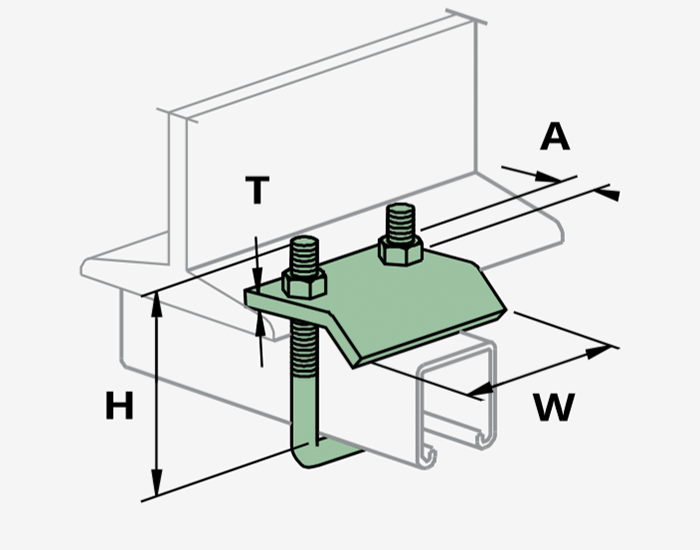

Beam clamp - Single channel 41x41 - M10 |
8.1 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions |
Thread |
Packing | Weight (kg/pcs) | Part no.1 | Finish | ||||||||||
| W | H | T | A | BL | EG | HG | SS | |||||||||
|
80 |
95 |
6 |
38 |
M10 |
10 |
0.41 |
08.1001 |
● |
○ |
● |
○ | |||||

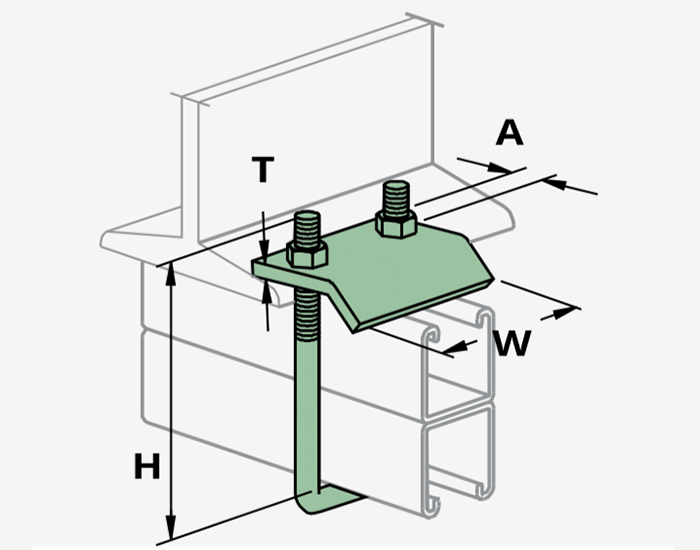

Beam clamp - Double channel 41x41 - M10 |
8.2 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions |
Thread |
Packing | Weight (kg/pcs) | Part no.1 | Finish | ||||||||||
| W | H | T | A | BL | EG | HG | SS | |||||||||
|
80 |
140 |
6 |
38 |
M10 |
10 |
0.48 |
08.1002 |
● |
○ |
● |
○ | |||||

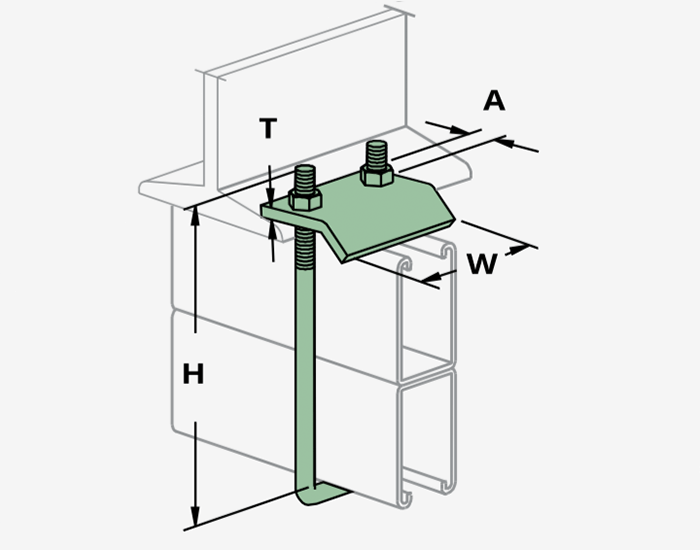

Beam clamp - Double channel 41x81 - M10 |
8.3 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions |
Thread |
Packing | Weight (kg/pcs) | Part no.1 | Finish | ||||||||||
| W | H | T | A | BL | EG | HG | SS | |||||||||
|
80 |
180 |
6 |
38 |
M10 |
10 |
0.50 |
08.1003 |
● |
○ |
● |
○ | |||||

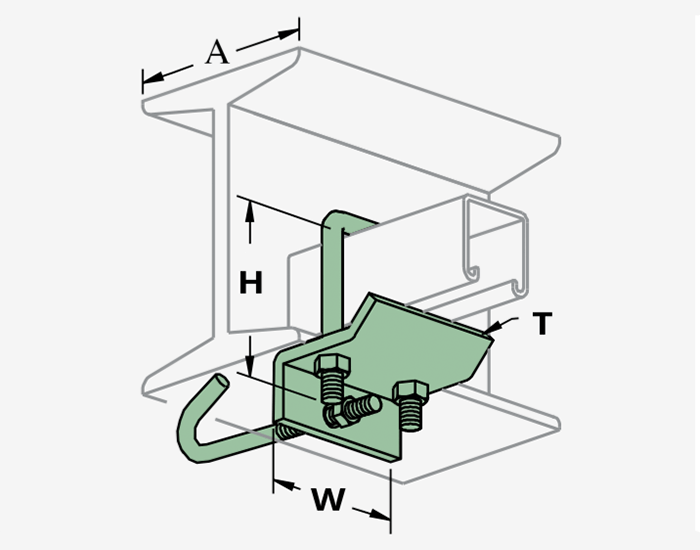

Beam clamp - Single channel 41x41 with hook - M10 |
8.4 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions |
Thread |
Packing | Weight (kg/pcs) | Part no.1 | Finish | ||||||||||
| W | H | T | A | BL | EG | HG | SS | |||||||||
|
80 |
95 |
6 |
80-150 |
M10 |
10 |
0.51 |
08.1004 |
● |
○ |
● |
○ | |||||

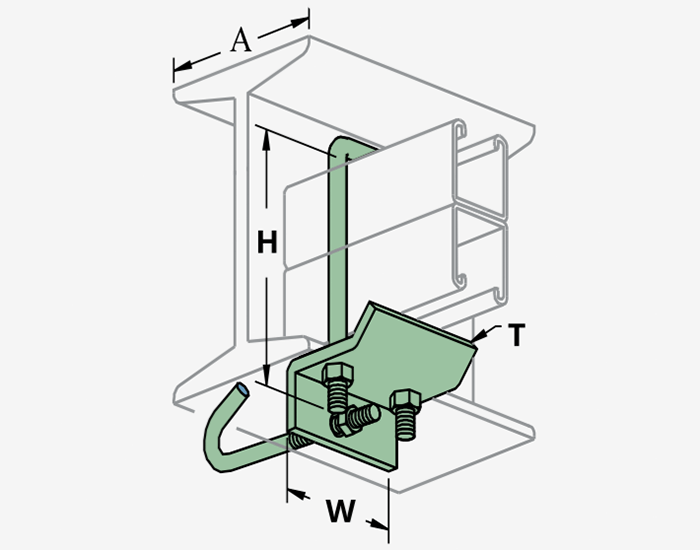

Beam clamp - Double channel 41x41 with hook - M10 |
8.5 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions |
Thread |
Packing | Weight (kg/pcs) | Part no.1 | Finish | ||||||||||
| W | H | T | A | BL | EG | HG | SS | |||||||||
|
80 |
140 |
6 |
80-150 |
M10 |
10 |
0.58 |
08.1005 |
● |
○ |
● |
○ | |||||

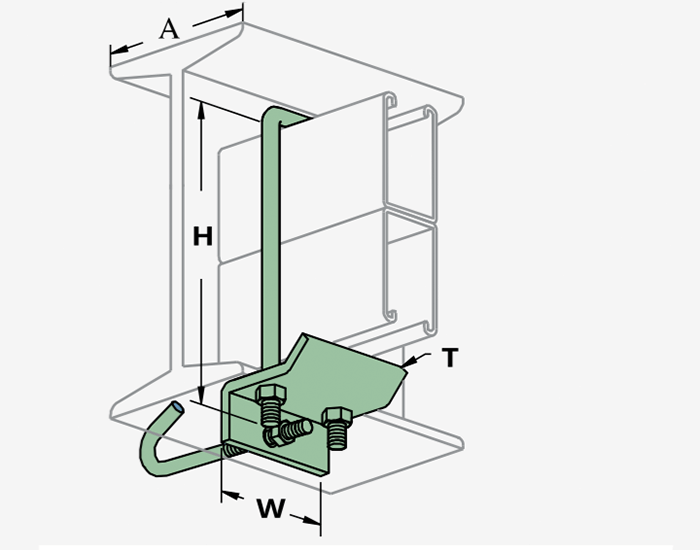

Beam clamp - Double channel 41x81 with hook - M10 |
8.6 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions |
Thread |
Packing | Weight (kg/pcs) | Part no.1 | Finish | ||||||||||
| W | H | T | A | BL | EG | HG | SS | |||||||||
|
80 |
180 |
6 |
80-150 |
M10 |
10 |
0.60 |
08.1006 |
● |
○ |
● |
○ | |||||

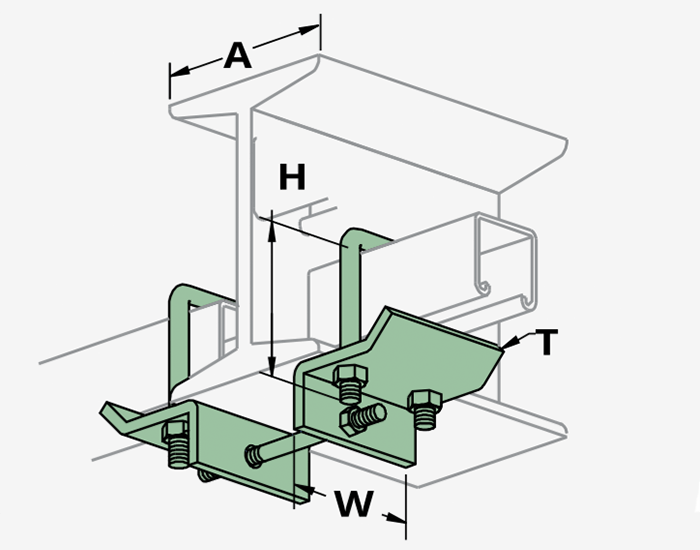

Double beam clamp - Single channel 41x41 - M10 |
8.7 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions |
Thread |
Packing | Weight (kg/pcs) | Part no.1 | Finish | ||||||||||
| W | H | T | A | BL | EG | HG | SS | |||||||||
|
80 |
95 |
6 |
80-150 |
M10 |
5 |
0.92 |
08.1007 |
● |
○ |
● |
○ | |||||

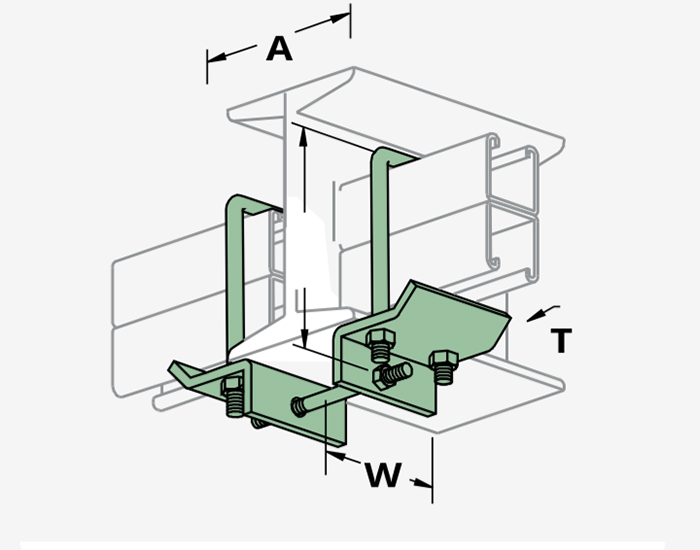

Double beam clamp - Double channel 41x41 - M10 |
8.8 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions |
Thread |
Packing | Weight (kg/pcs) | Part no.1 | Finish | ||||||||||
| W | H | T | A | BL | EG | HG | SS | |||||||||
|
80 |
140 |
6 |
80-150 |
M10 |
5 |
1.06 |
08.1008 |
● |
○ |
● |
○ | |||||

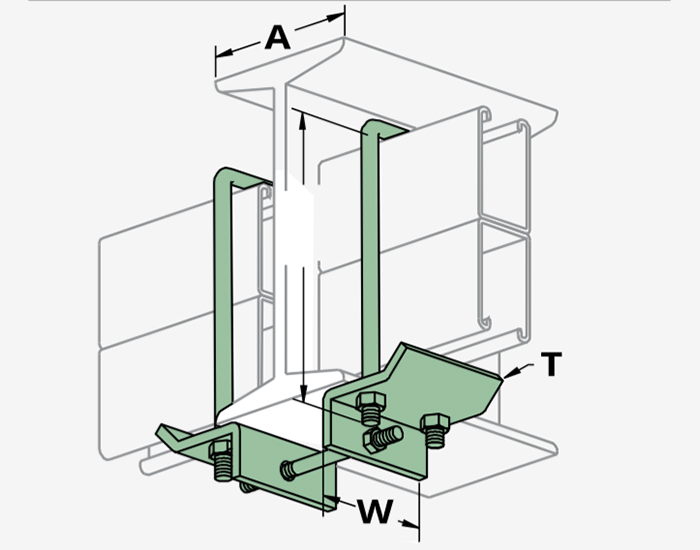

Double beam clamp - Double channel 41x81 - M10 |
8.9 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions |
Thread |
Packing | Weight (kg/pcs) | Part no.1 | Finish | ||||||||||
| W | H | T | A | BL | EG | HG | SS | |||||||||
|
80 |
180 |
6 |
80-150 |
M10 |
5 |
1.10 |
08.1009 |
● |
○ |
● |
○ | |||||

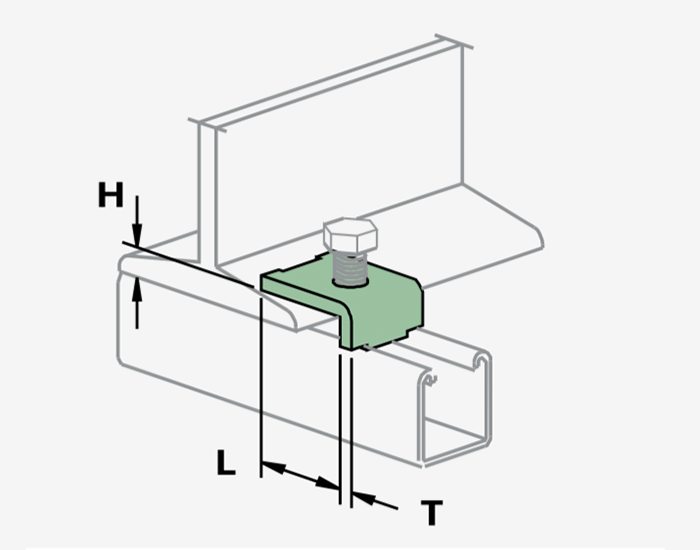

Beam clamp strut 41 |
8.10 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dimensions |
Hole |
Packing | Weight (kg/pcs) | Part no.1 | Finish | ||||||||||
| L | H | T | BL | EG | HG | SS | ||||||||||
|
43 |
32 |
6 |
Ø13 |
10 |
0.12 |
08.1010 |
● |
○ |
● |
○ | ||||||
