Angle Plate Fixing Bracket

This section offers a wide range of fittings and accessories to complete our strut channel system.

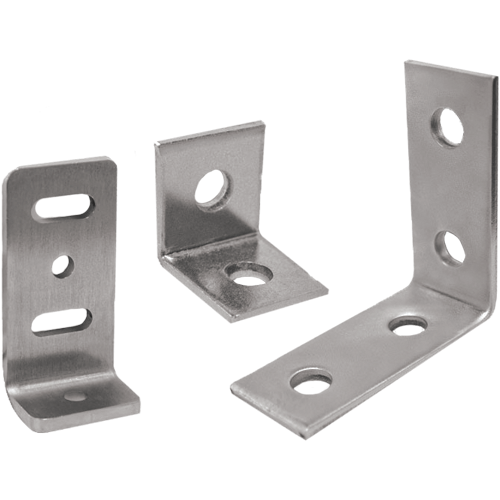

Fittings brackets are suitable for the construction of the channel systems. The connectors are offered as a flat plate or angle fittings with formed holes or slot for connecting the mounting channel.



At the European Strut & Support Manufacturer, the fittings can be offered in 4, 5, or 6 mm and are available in a variety of finishes as well as stainless steel.



All of our Angle Plate Fixing Bracket products can be produced in different materials, thicknesses, lengths, with or without a finish. We can design and produce what you need!

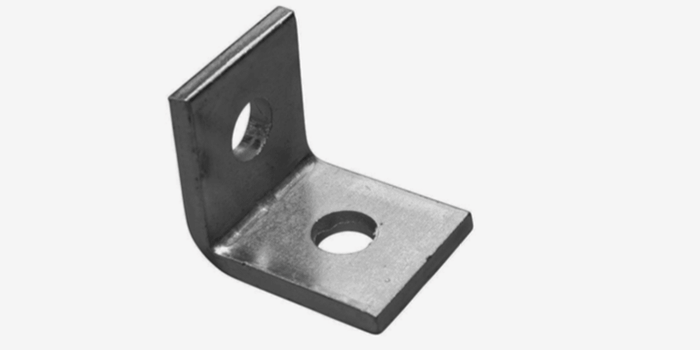

Angle fixing 50/48-90 - 1-1 hole

6.1
     Dimensions

Nr. of holes

 Packing Weight (kg/pcs) Part no.1 Finish
W L H T Hole BL SG HG SS

40

 50 48

4

6

 Ø13

2

10

0.10

0.15

06.4001

06.6001

●

●

●

●

●

●

●

●

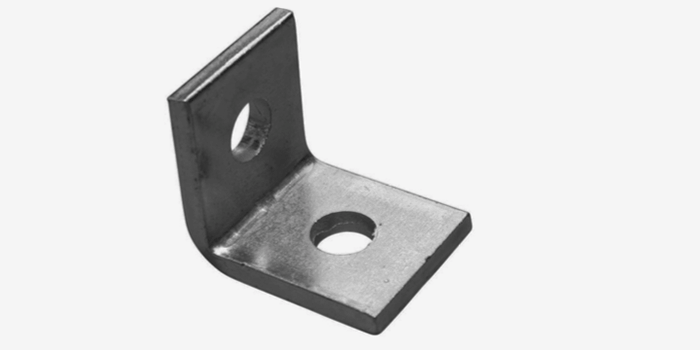

Angle fixing 58/42-90 - 1-1 hole

6.2
     Dimensions

Nr. of holes

 Packing Weight (kg/pcs) Part no.1 Finish
W L H T Hole BL SG HG SS

40

 58 42

4

6

 Ø13

2

10

0.10

0.15

06.4002

06.6002

●

●

●

●

●

●

●

●



Angle fixing 103/42-90 - 1-2 hole

6.3
     Dimensions

Nr. of holes

 Packing Weight (kg/pcs) Part no.1 Finish
W L H T Hole BL SG HG SS

40

 103 42

4

6

 Ø13

3

10

0.16

0.23

06.4003

06.6003

●

●

●

●

●

●

●

●

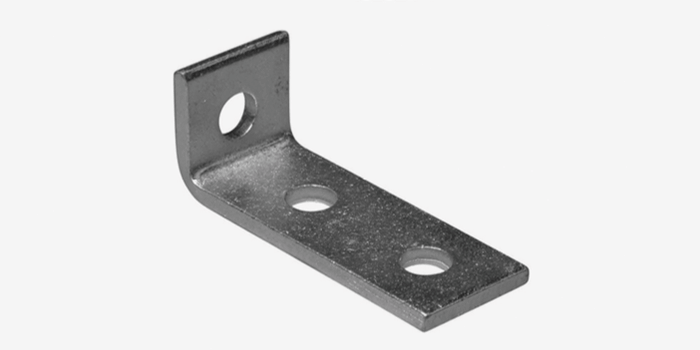

Angle fixing 99/47-90 - 1-2 hole

6.4
     Dimensions

Nr. of holes

 Packing Weight (kg/pcs) Part no.1 Finish
W L H T Hole BL SG HG SS

40

 99 47

4

6

 Ø13

3

10

0.16

0.23

06.4004

06.6004

●

●

●

●

●

●

●

●

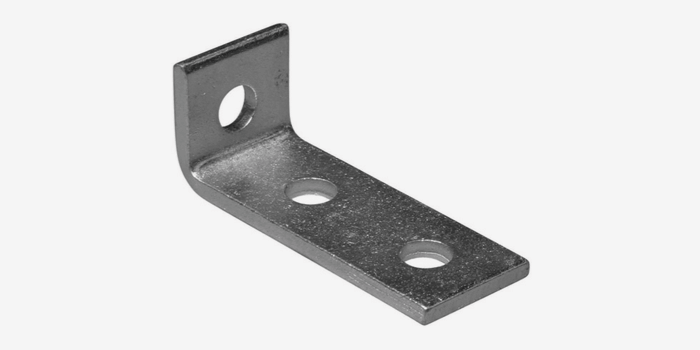

Angle fixing 89/57-90 - 1-2 hole

6.5
     Dimensions

Nr. of holes

 Packing Weight (kg/pcs) Part no.1 Finish
W L H T Hole BL SG HG SS

40

 89 57

4

6

 Ø13

3

10

0.16

0.24

06.4005

06.6005

●

●

●

●

●

●

●

●

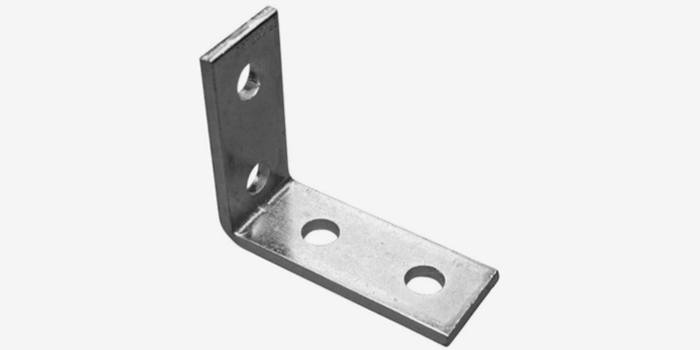

Angle fixing 102/86-90 - 2-2 hole

6.6
     Dimensions

Nr. of holes

 Packing Weight (kg/pcs) Part no.1 Finish
W L H T Hole BL SG HG SS

40

 102 86

4

6

 Ø13

4

10

0.16

0.32

06.4006

06.6006

●

●

●

●

●

●

●

●

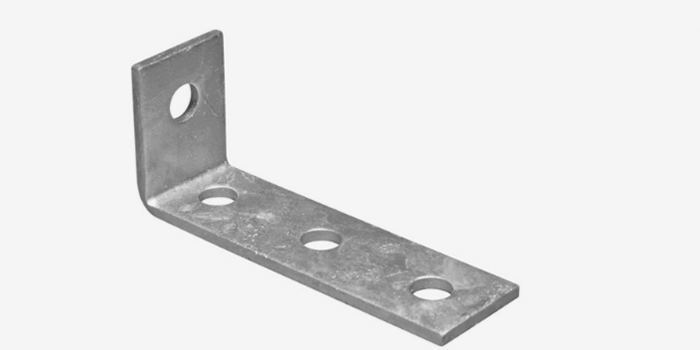

Angle fixing 132/56-90 - 1-3 hole

6.7
     Dimensions

Nr. of holes

 Packing Weight (kg/pcs) Part no.1 Finish
W L H T Hole BL SG HG SS

40

 132 56

4

6

 Ø13

4

10

0.22

0.32

06.4007

06.6007

●

●

●

●

●

●

●

●

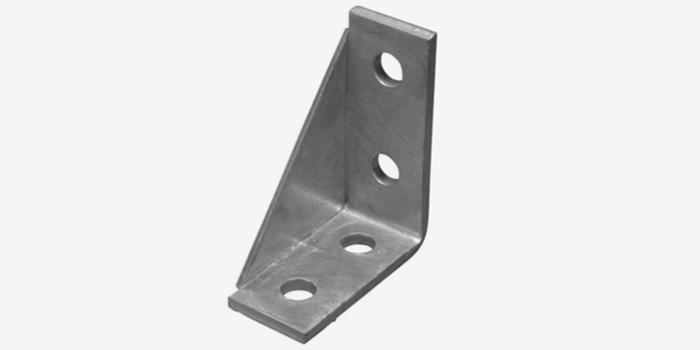

Angle fixing 106/89-90 - 2-2 hole

6.8
     Dimensions

Nr. of holes

 Packing Weight (kg/pcs) Part no.1 Finish
W L H T Hole BL SG HG SS

43

 106 89

4

6

 Ø13

4

1

0.29

0.42

06.4008

06.6008

●

●

●

●

●

●

●

●

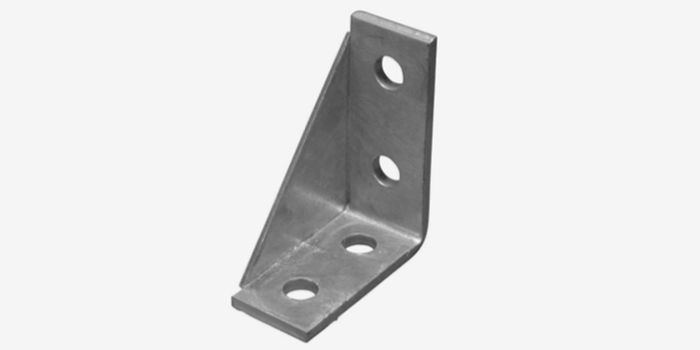

Angle fixing L 106/89-90 - 2-2 hole

6.9
     Dimensions

Nr. of holes

 Packing Weight (kg/pcs) Part no.1 Finish
W L H T Hole BL SG HG SS

43

 106 89

4

6

 Ø13

4

1

0.29

0.42

06.4009

06.6009

●

●

●

●

●

●

●

●

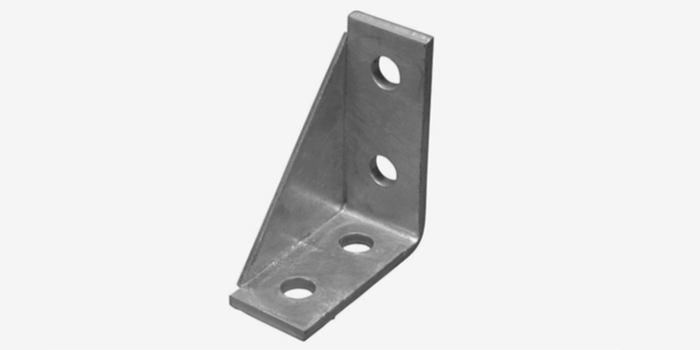

Angle fixing 105/90-90 - 2-2 hole

6.10
     Dimensions

Nr. of holes

 Packing Weight (kg/pcs) Part no.1 Finish
W L H T Hole BL SG HG SS

90

 105 45

4

6

 Ø13

4

1

0.31

0.45

06.4010

06.6010

●

●

●

●

●

●

●

●

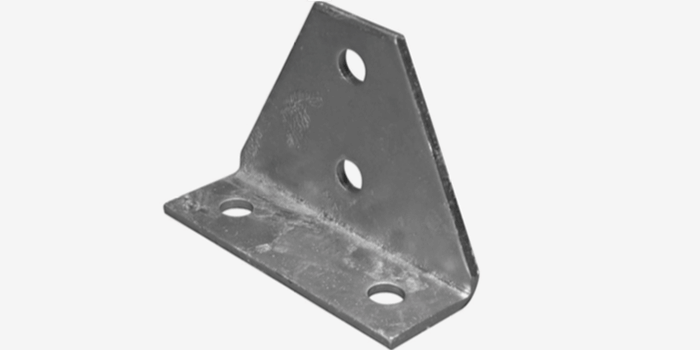

Angle fixing 100/136-90 - 2-2 hole

6.11
     Dimensions

Nr. of holes

 Packing Weight (kg/pcs) Part no.1 Finish
W L H T Hole BL SG HG SS

100

 136 45

4

6

 Ø13

4

1

0.40

0.57

06.4011

06.6011

●

●

●

●

●

●

●

●

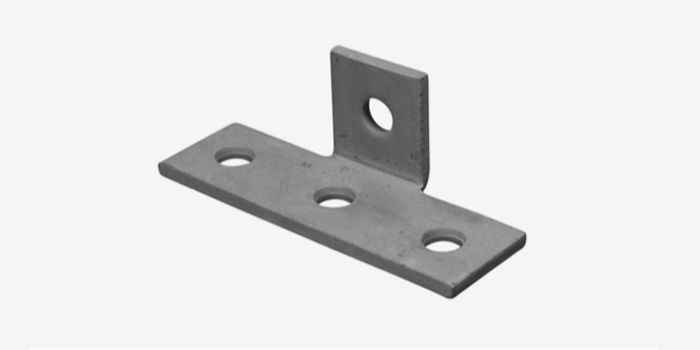

Angle fixing T-M 52/136-90 - 3-1 hole

6.12
     Dimensions

Nr. of holes

 Packing Weight (kg/pcs) Part no.1 Finish
W L H T Hole BL SG HG SS

45

 136 52

4

6

 Ø13

4

1

0.24

0.34

06.4012

06.6012

●

●

●

●

●

●

●

●

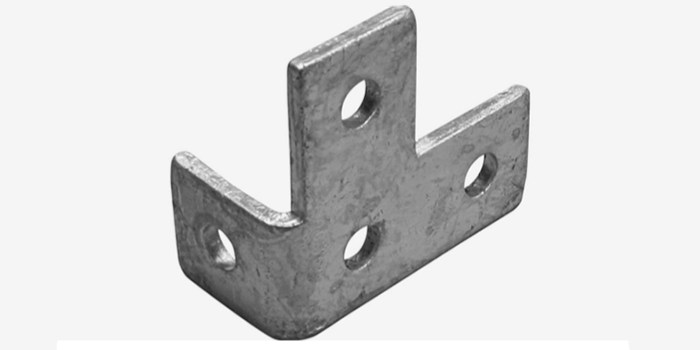

Angle fixing T-R 50/90-90 - 3-1 hole

6.13
     Dimensions

Nr. of holes

 Packing Weight (kg/pcs) Part no.1 Finish
W L H T Hole BL SG HG SS

50

 95 90

4

6

 Ø13

4

5

0.22

0.32

06.4013

06.6013

●

●

●

●

●

●

●

●



Angle fixing T-L 50/90-90 - 3-1 hole

6.14
     Dimensions

Nr. of holes

 Packing Weight (kg/pcs) Part no.1 Finish
W L H T Hole BL SG HG SS

50

 95 90

4

6

 Ø13

4

5

0.24

0.25

06.4014

06.6014

●

●

●

●

●

●

●

●

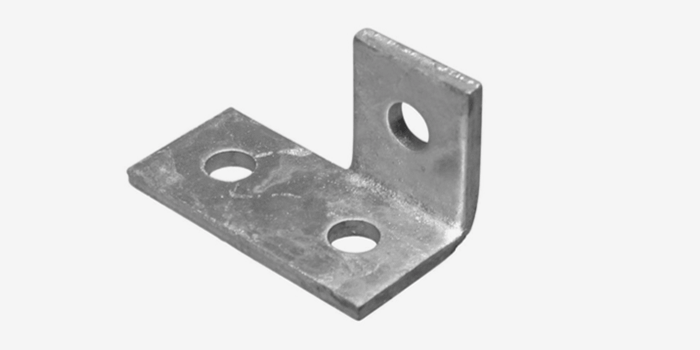

Angle fixing G-R 50/90-90 - 1-2 hole

6.15
     Dimensions

Nr. of holes

 Packing Weight (kg/pcs) Part no.1 Finish
W L H T Hole BL SG HG SS

45

 90 50

4

6

 Ø13

3

5

0.17

0.25

06.4015

06.6015

●

●

●

●

●

●

●

●

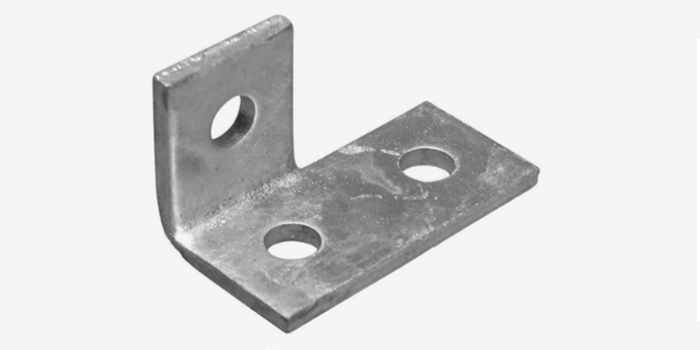

Angle fixing G-L 50/50-90 - 1-2 hole

6.16
     Dimensions

Nr. of holes

 Packing Weight (kg/pcs) Part no.1 Finish
W L H T Hole BL SG HG SS

45

 90 50

4

6

 Ø13

3

5

0.17

0.25

06.4016

06.6016

●

●

●

●

●

●

●

●

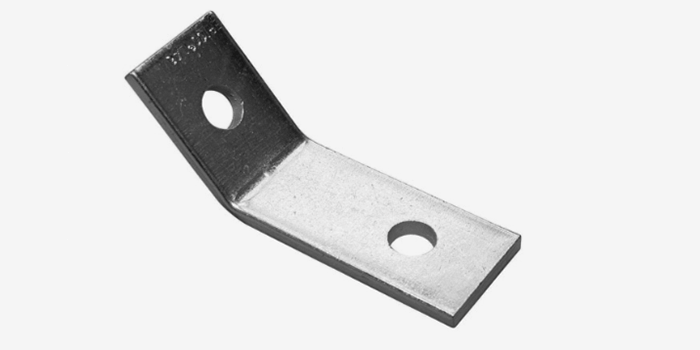

Angle fixing 53/78-45 - 1-1 hole

6.17
     Dimensions

Nr. of holes

 Packing Weight (kg/pcs) Part no.1 Finish
W L H T Hole BL SG HG SS

40

 78 53

4

6

 Ø13

2

5

0.17

0.24

06.4017

06.6017

●

●

●

●

●

●

●

●

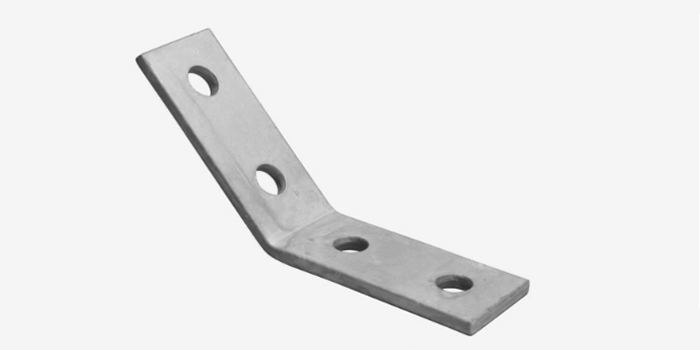

Angle fixing 87/87-45 - 2-2 hole

6.18
     Dimensions

Nr. of holes

 Packing Weight (kg/pcs) Part no.1 Finish
W L H T Hole BL SG HG SS

50

 87 87

4

6

 Ø13

4

5

0.21

0.32

06.4018

06.6018

●

●

●

●

●

●

●

●

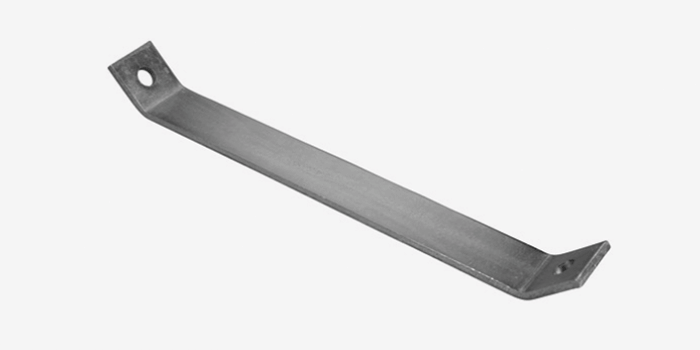

Angle brace 300/300-45 - 1-1 hole

6.19
     Dimensions

Nr. of holes

 Packing Weight (kg/pcs) Part no.1 Finish
W L H T Hole BL SG HG SS

40

 368 368

4

6

 Ø13

2

1

0.51

0.73

06.4019

06.6019

●

●

●

●

●

●

●

●

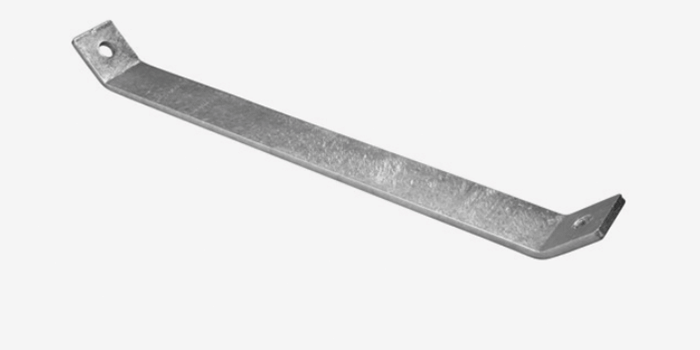

Angle brace 200/200-45 - 1-1 hole

6.20
     Dimensions

Nr. of holes

 Packing Weight (kg/pcs) Part no.1 Finish
W L H T Hole BL SG HG SS

40

 218 218

4

6

 Ø13

2

1

0.38

0.55

06.4020

06.6020

●

●

●

●

●

●

●

●

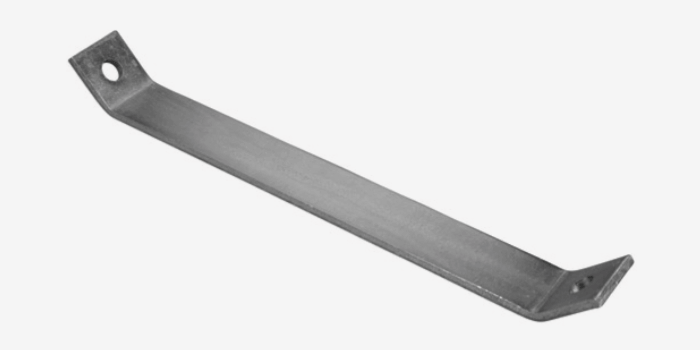

Angle brace 500/500-45 - 1-1 holes

6.21
     Dimensions

Nr. of holes

 Packing Weight (kg/pcs) Part no.1 Finish
W L H T Hole BL SG HG SS

40

 651 651

4

6

 Ø13

2

1

0.98

1.4

06.4021

06.6021

●

●

●

●

●

●

●

●



▲
